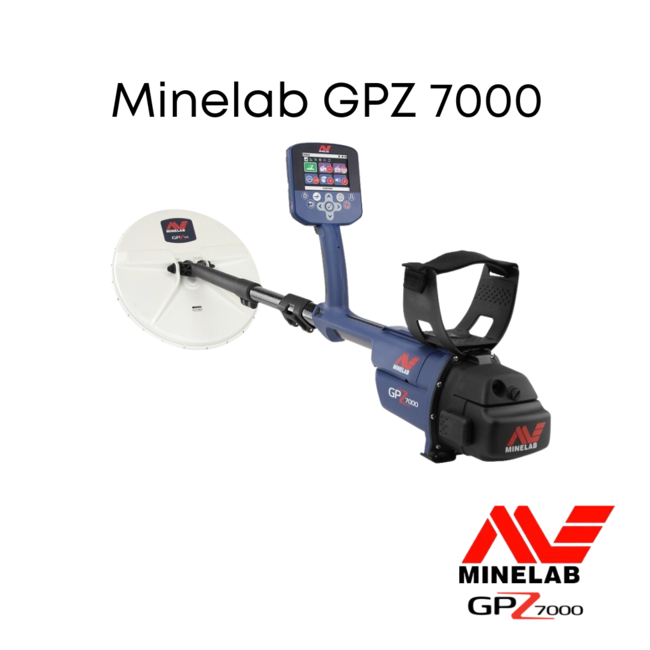

Minelab GPZ 7000
This exciting detector has many versatile features and new technologies, including wireless audio, integrated GPS and a weatherproof platform.
With extreme depth capability and maximum gold sensitivity, the innovative Minelab GPZ 7000 takes gold detecting to a new level of performance. This exciting detector has many versatile features and new technologies including wireless audio, integrated GPS and a weatherproof platform. With easy page navigation for detecting and mapping functions, and icons showing settings at a glance, you'll be an expert in no time!
Extreme Gold Depth
So how deep can you go? Well, up to 40%* deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before!
Simple Menu System
The easy-to-use Menu Pages group similar functions together under Detect and Map sections, with all settings quickly accessible. Use the Guide Sequences to get started. You don’t need to be an expert to find gold!
Maximum Gold Sensitivity
The incredible sensitivity of the GPZ 7000 with the Super‑D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there.
Wireless Audio Freedom
Detect without your headphones attached to the detector. With the WM 12 Wireless Module you have the choice of using the in-built speaker, the supplied headphones, or your favourite headphones.
Precision Ground Balance
Most gold is buried in the mineralised ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease.
GPS Locating & PC Mapping
See your location and log gold finds as you detect. With the built-in GPS you’ll efficiently cover more ground and won’t miss a nugget! Record your favourite ‘hot-spots’ by saving data to XChange 2 with Google Maps.
Enhanced Noise Immunity
The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference!
Waterproof Coil to 1 m (3 ft)‡
The GPZ 14 coil is waterproof and submersible to a depth of 1 m (3 ft). You can easily detect rivers and shorelines with no fuss! The weatherproof design of the GPZ 7000 allows you to go detecting in rainy or wet conditions.
New Gold Technology:
A quantum leap in gold performance with breakthrough new technology from Bruce Candy.
ZVT technology goes to the NEXT LEVEL for all serious gold prospectors, providing substantially improved depth. No longer will you be limited to using either sine wave continuous VLF transmission detectors, that struggle in mineralised ground, or square wave PI transmission detectors, that can be insensitive to varying gold sizes and compositions.
“This revolutionary new ZVT technology far surpasses GPX detectors for detecting deep large nuggets AND finding gold at any depth. The GPZ 7000 will open up the gold fields again.”
Bruce Candy, GPZ Inventor

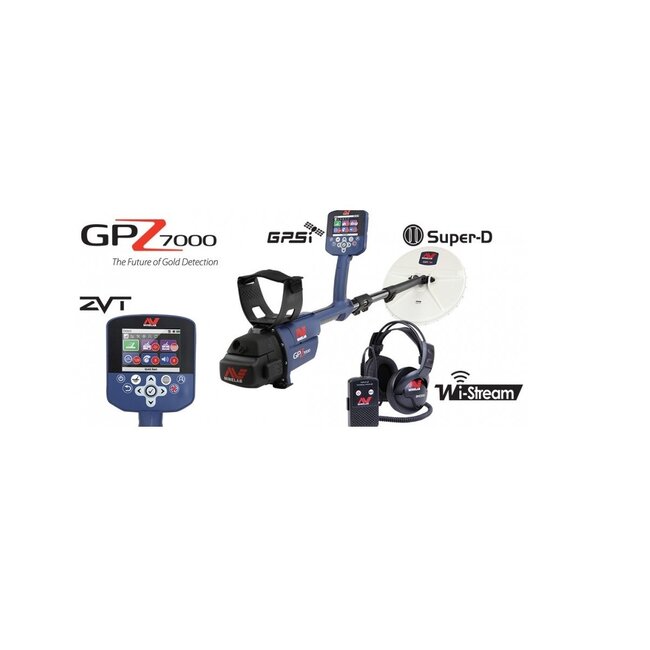

ZVT (Zero Voltage Transmission) creates ultra‑constant high-power opposite polarity magnetic fields, increasing gold sensitivity. This innovative technology detects gold nuggets at extreme depths.
Super‑D The Super‑D smart coil consists of a central transmit winding and two outer receive windings. This configuration greatly decreases interference from magnetic soils, reducing ground noise.
GPSi uses a u‑blox GPS engine to integrate location and time data with detector settings. This creates WayPoint, FindPoint and GeoHunt files to use with XChange 2.
Wi‑Stream uses low-power digital audio transmission to achieve no perceivable audio time lag (<10 ms). This provides reliability and maximum sound quality.

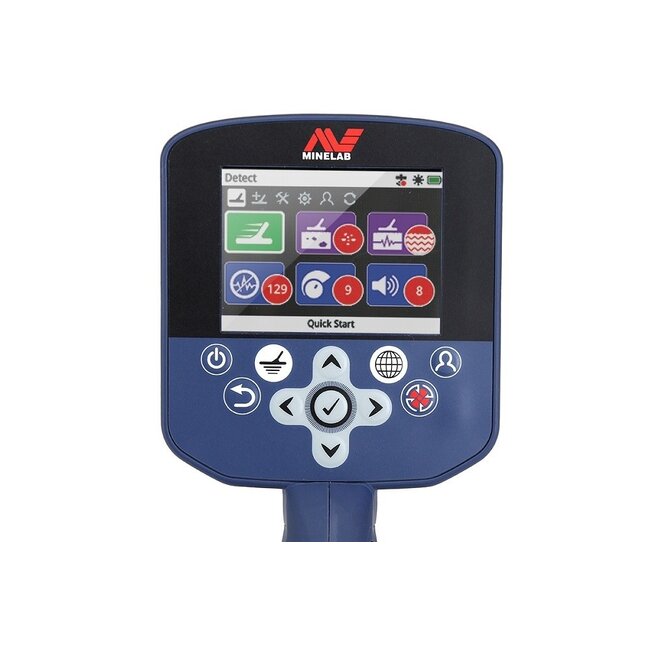

Simple Menu Navigation:
With intuitive page navigation for detecting and mapping functions, and icons showing settings at a glance, you’ll be an expert in no time! The GPZ 7000 is fully customisable and configurable, with many easily adjustable functions.
Search Modes Gold Mode - High Yield, General, Extra Deep
Ground Type - Normal, Difficult, Severe
Noise Cancel Auto and Manual (256 channels)
Sensitivity Level (1–20)
Volume Range (1–20) Limit (1–20)
Threshold Level Level (1–50) Pitch (1–100)
Audio Smoothing Off, Low, High
Ground Balance Auto and Manual (Quick‑Trak trigger button)
GPS Coordinates DMS (degrees, minutes, seconds), DM (degrees, minutes)
Zoom Levels 10x10, 20x20, 100x100 (metres/yards per cell)
GeoStore 100 FindPoints, 100 Waypoints, 10 GeoHunts
GPS Engine u-blox Neo-7 (56 channels, SBAS: WAAS, EGNOS, MSAS)
Coil (GPZ 14) 14"x13" Super‑D Configuration with skidplate (waterproof to 1 m/3 ft)
Battery Li-Ion Rechargeable Pack (7.2V DC, 72Wh)
Audio Output 6.3mm (¼") non waterproof socket, Wi‑Stream wireless signal transmission
Headphones KOSS UR 30 100 ohm with 6.3 mm plug (¼-inch) (non waterproof )
Wireless Audio WM 12 module (14 channels) Connect one or more WM 12 modules
Display Full colour LCD (320 x 240 pixels)
Detector Weight 3.32 kg (7.32 lb) (Including GPZ 14 coil, skidplate and 72Wh battery)
Detector Length Collapsed: 1170 mm (46.1”) Laid flat, packed position: 1304 mm (51.3”)
Extended: 1526 mm (60.1”) Laid flat, packed position: 1651 mm (65.0”)
Harness PRO‑SWING 45 with additional J‑strut, cross piece and GA 10 Guide Arm
Key Technologies ZVT, Super-D, GPSi, Wi-Stream, W8
PC Connection USB interface for XChange 2 PC software
XChange 2 Software supplied on CD (Windows XP, Vista, 7, 8 compatible)
Software Updates GPZ 7000 and WM 12 upgradeable via XChange 2 (with internet connection)
Detector Menu Page Navigation (6 Detect pages, 5 Map pages) with built-in Guide Sequences
User Interface Languages: English Español Português Français Русский العربية
Documentation Getting Started Guide and Field Guides
Instruction Manual (on CD), XChange 2 Manual (on CD)
