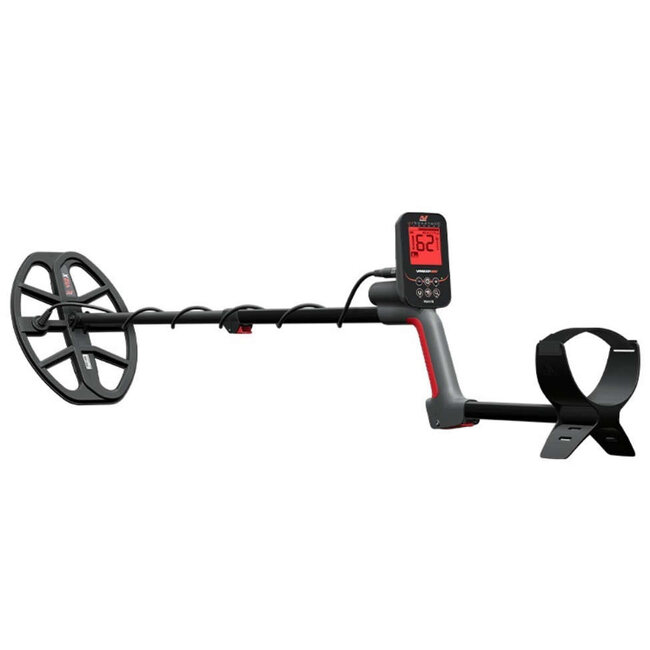

Minelab Vanquish 560 - Easy Fully-Automatic Waterproof Metal Detector

Looking for more power, precision and control?

The Minelab Vanquish 560 raises the bar in the Vanquish series. With Multi-IQ® technology, it scans multiple frequencies simultaneously for accurate target response and efficient recovery, even in challenging soils. The larger V12X coil increases coverage and sensitivity. With four Iron Bias levels, five target tones and handgrip vibration, valuable targets stand out clearly. Weighing only 1.3 kg, fully waterproof (IP68, to 5 m) and featuring Bluetooth® LE Audio, the Vanquish 560 is built for all terrains.

Why choose the Minelab Vanquish 560?

• Multi-IQ® technology: simultaneous multi-frequency for maximum performance in all soils.
• Fully waterproof: IP68 rating, submersible to 5 m (16 ft).
• Larger coil: V12X 12" x 9" Double-D for more depth and coverage.
• Advanced controls: 10 sensitivity levels, 30 discrimination segments and 4 Iron Bias levels.
• Enhanced feedback: 5 target tones, 10 volume levels and handgrip vibration.
• Low-light detection: red LED display and built-in flashlight.
• Audio: wired headphones included + support for low-latency Bluetooth® LE Audio.

Search Modes

Select from Park, Field, Beach and a customisable User Profile. Adapt quickly to busy sites, open fields or challenging shorelines.

Technical specifications

• Technology: Multi-IQ® simultaneous multi-frequency
• Waterproof rating: IP68, up to 5 m (16 ft)
• Weight: approx. 1.3 kg (2.9 lbs)
• Search modes: Park, Field, Beach, User Profile
• Target IDs: 119
• Discrimination: 30 segments
• Sensitivity: 10 levels
• Target tones: 5 + 10 volume levels
• Pinpoint mode: yes
• Iron Bias: 4 levels
• Extra features: handgrip vibration, red LED display, built-in flashlight
• Audio: wired headphones included + Bluetooth® LE Audio support
• Battery: built-in Li-ion, up to 10 hours runtime
• Coil: V12X 12" x 9" Double-D, waterproof
• Warranty: 3 years

What's in the box

• Minelab Vanquish 560 metal detector
• V12X 12" x 9" DD coil
• Magnetic USB charging cable
• Built-in Li-ion battery
• Wired headphones

Frequently Asked Questions (FAQ)

What's the difference compared to the Vanquish 460?

The 560 comes with a larger V12X coil, more audio options (5 tones) and 4 Iron Bias levels for improved precision.

Is the Vanquish 560 waterproof?

Yes, with an IP68 rating it's fully waterproof and submersible to 5 m (16 ft).

How long does the battery last?

Up to 10 hours per charge, recharged via the magnetic USB cable.

Does it support wireless headphones?

Yes, it supports low-latency Bluetooth® LE Audio. Wired headphones are included.

Is it for beginners or advanced users?

Both. Easy to use, but with advanced settings for users who want more control.
