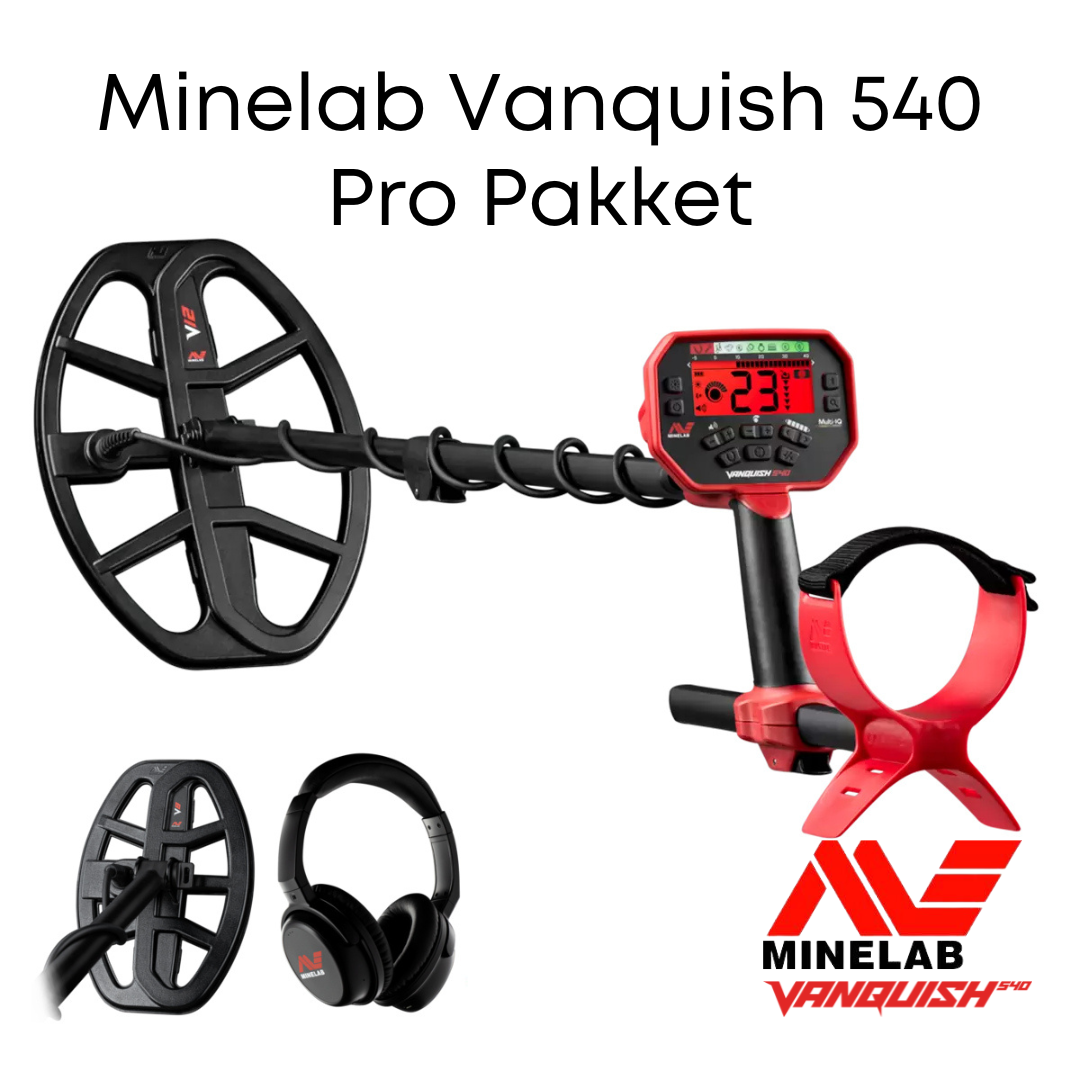

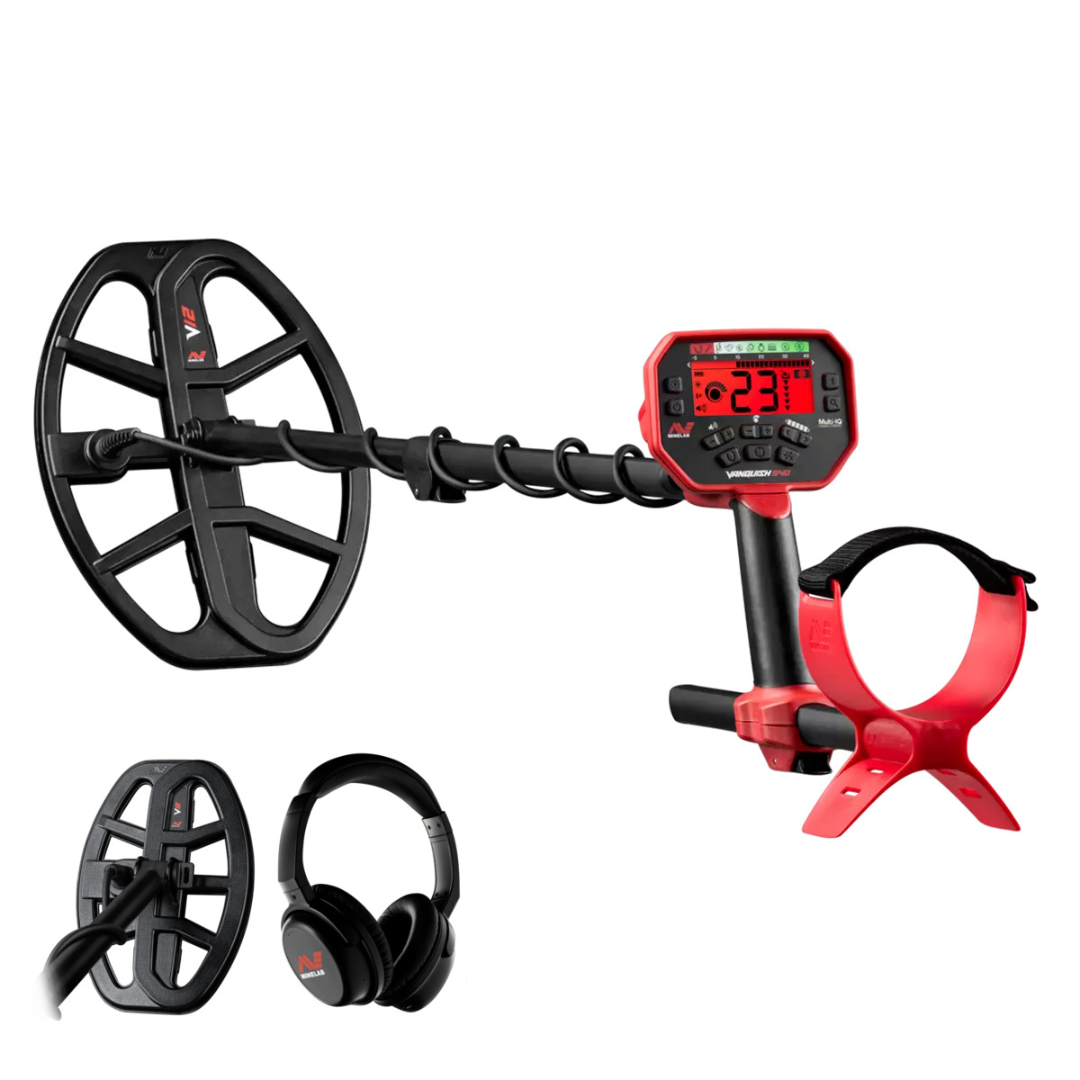

The Vanquish 540 Pro Pack is the best in the range with Multi Frequency at an affordable price. The set comes with 2 double-D discs: a V12 (30x23 cm) and a V8 (20 x 13 cm) and a Minelab wireless headset that you can easily connect to your detector thanks Read more

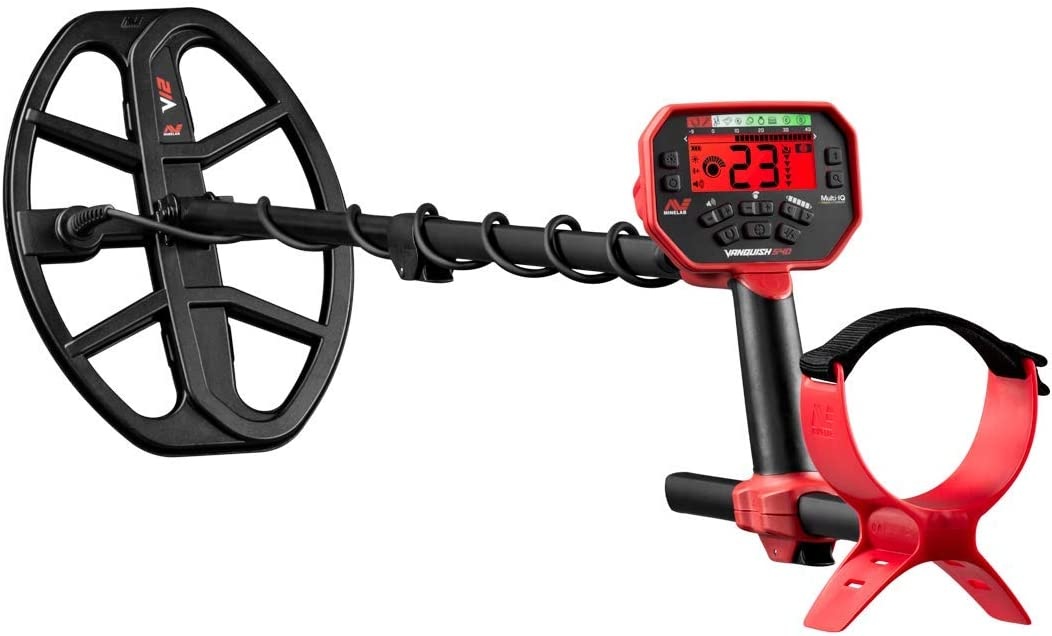

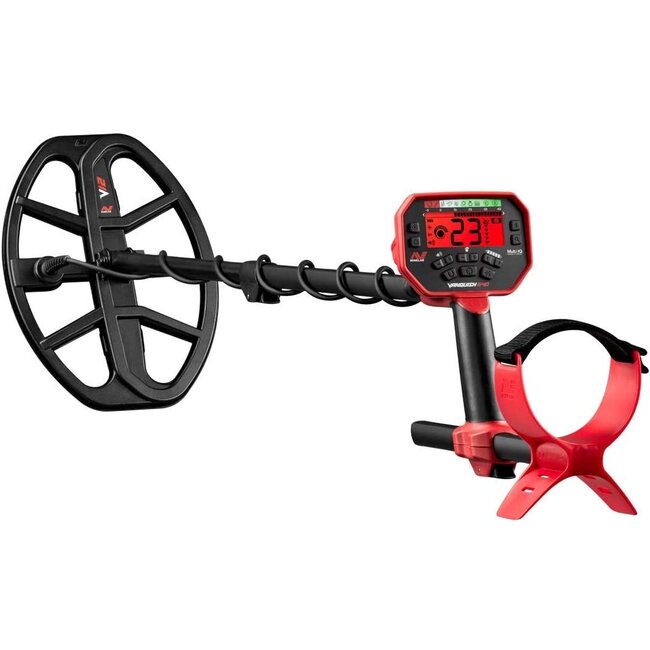

Minelab VANQUISH 540 Pro-Pack Metal Detector
For the serious detectorist who’s always in control. As if Multi-IQ technology, audio control, and pinpoint weren't enough, the 540 also boasts iron-bias control, Bluetooth headphones, red LED backlight and rechargeable batteries.
What’s more, it comes with waterproof 8” and 12” coils as standard for greater depth and precision. No matter where the hunt takes you, the 540 is the ultimate packout for those who want it all.
SIMULTANEOUS MULTI-FREQUENCY TECHNOLOGY
Why Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Simply turn on and go. Nothing goes undetected. Silver, gold or jewelery. Unearth the power of VANQUISH with Multi-IQ.
ALL METALS. ALL SOILS. ALL THE TIME.
ALL-TERRAIN
No matter what you seek, VANQUISH has you covered. Simply select one of the four Find Modes — Coin, Relic, Jewelery, or All Metal — then start swinging. Each mode is pre-programmed and optimized to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Find Mode.
VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver ultimate control over what metals you want to accept or reject.
PACK & CARRY

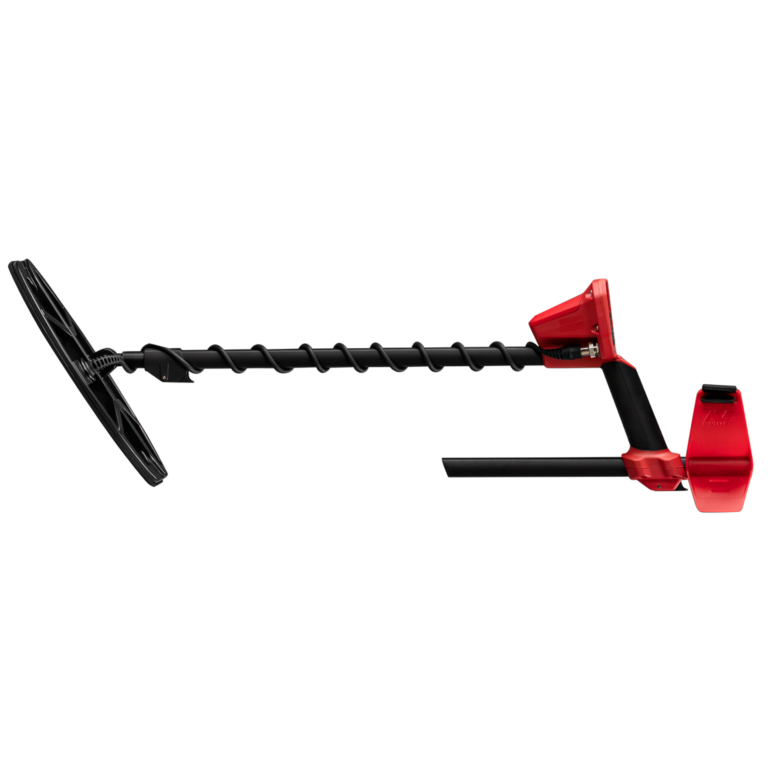

1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.
IRON BIAS
More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.
INCLUDED COILS

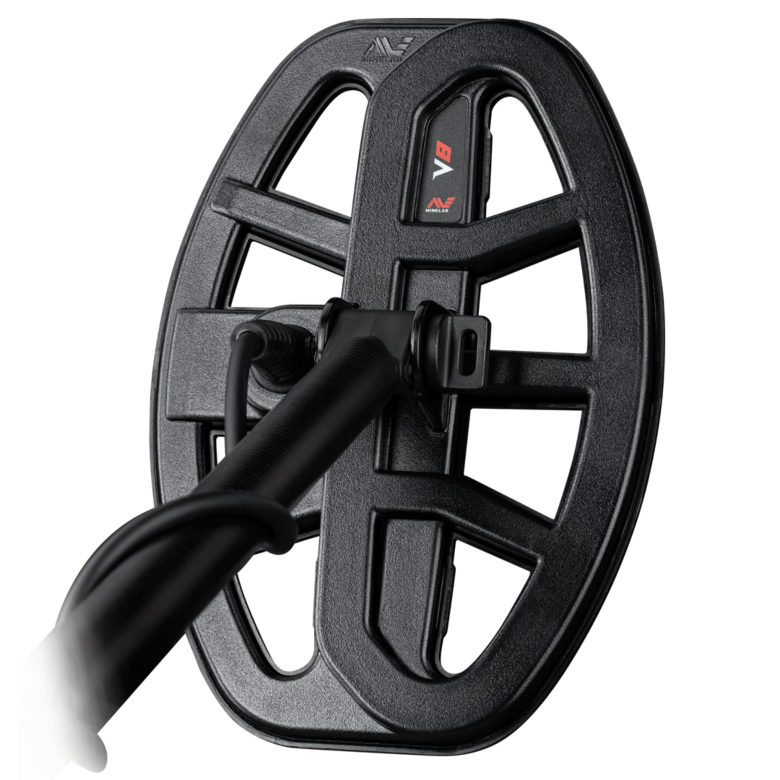

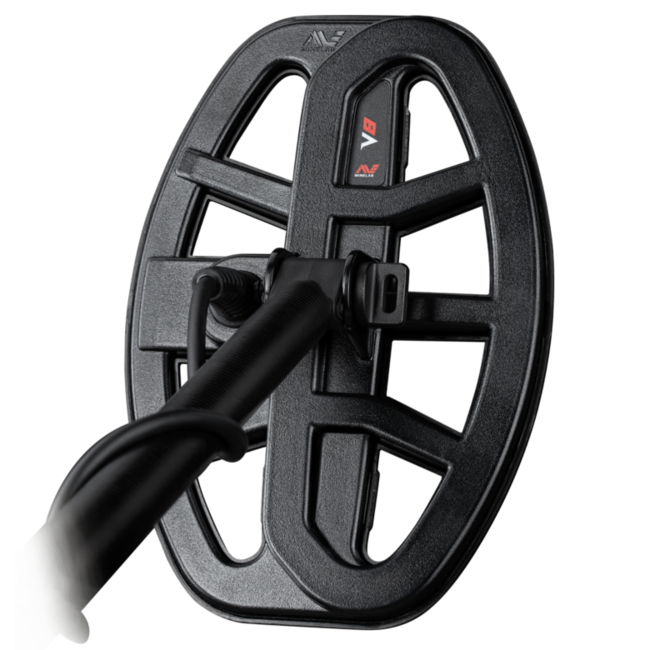

Cover more ground and search deeper or detect more accurately and in tight spaces with both a 12” and 8” coil included as standard.
AUDIO CONTROL

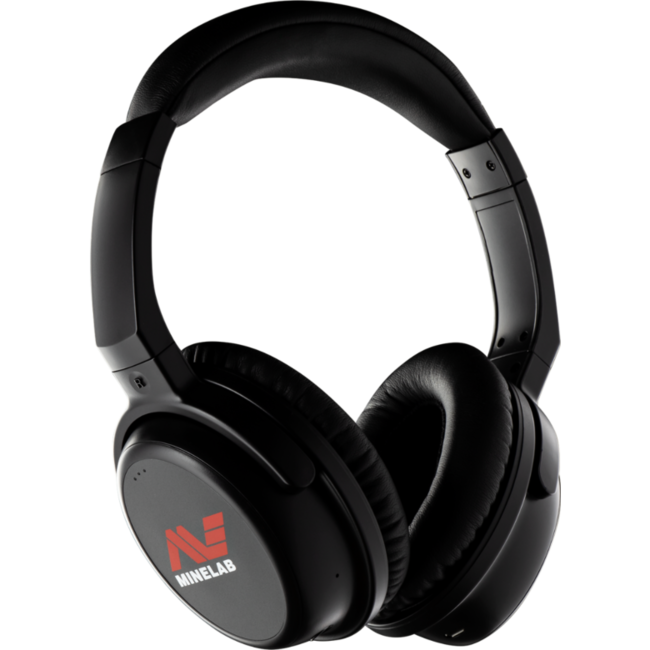

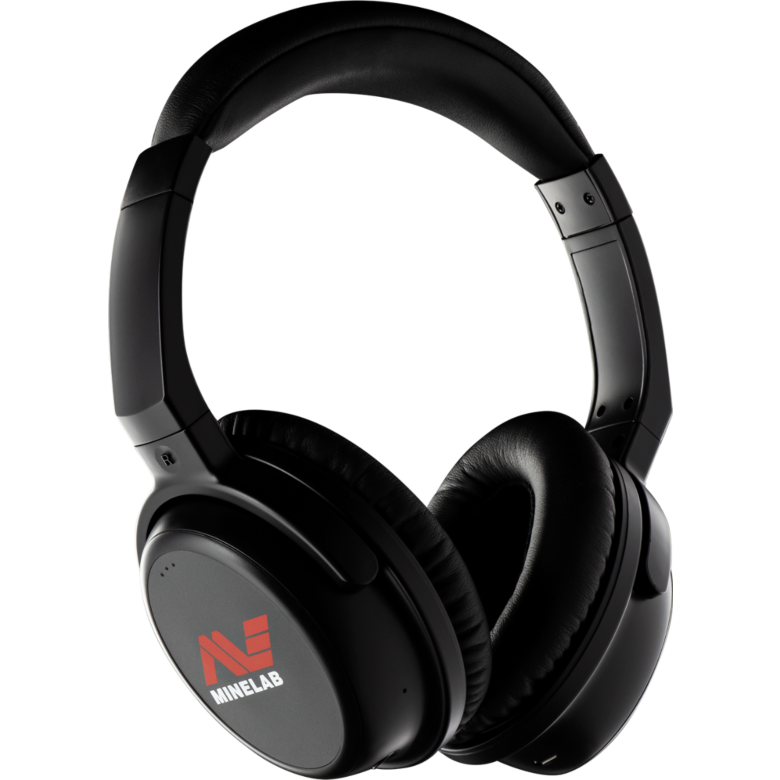

Automatic noise cancelling, lag-free audio response and 10-volume settings put you in control, with included Bluetooth wireless headphones.
WATERPROOF

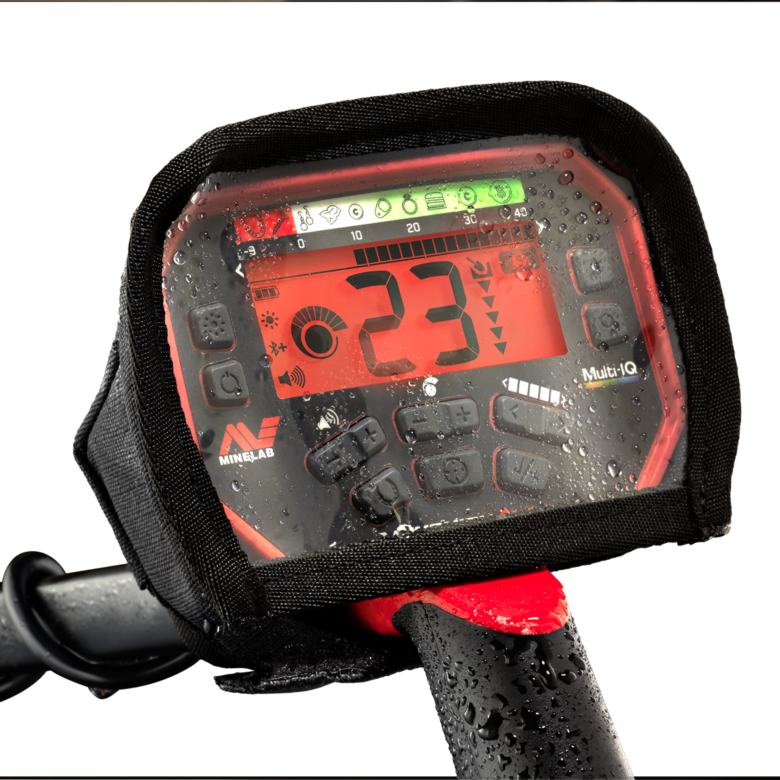

Waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with included Rain Cover)
PINPOINT MODE
Included pinpoint mode to help you locate targets with extreme precision.
BACKLIGHT
Red LED Backlight to help low-light vision.
- Best for Beach, Beginner, Coin, Gold, Relic
- Warranty Yes
- Detector Type All-Purpose
- Interchangeable Search Coil Yes
- Technology Multi-IQ
- Arm Rest Adjustable
- Arm Rest Strap Yes
- Adjustable Shaft Yes
- GPS No
- Audio Tones Yes
- Depth Indication Yes
- Programmable Target Id Yes
- Target Id No
- Pinpoint Mode Yes
- Vibration Mode No
- Search Modes 4
- Search Mode Types Coins, Custom, Jewelry, Relics
- Search Flashlight No
- Display Type LCD
- Backlit Display Yes
- Volume Control Yes
- Bluetooth Compatible Yes
- Interchangeable Headphones No
- Rechargeable System Yes
| Search frequency | Multi-IQ |
| Technic | VLF and Multi-IQ |
| Metal detector type | Digital |
| Service | Push Buttons |
| Number of search modes | 5 Search Modes (Coins, Relic, Jewelry, All Metals, Custom) |

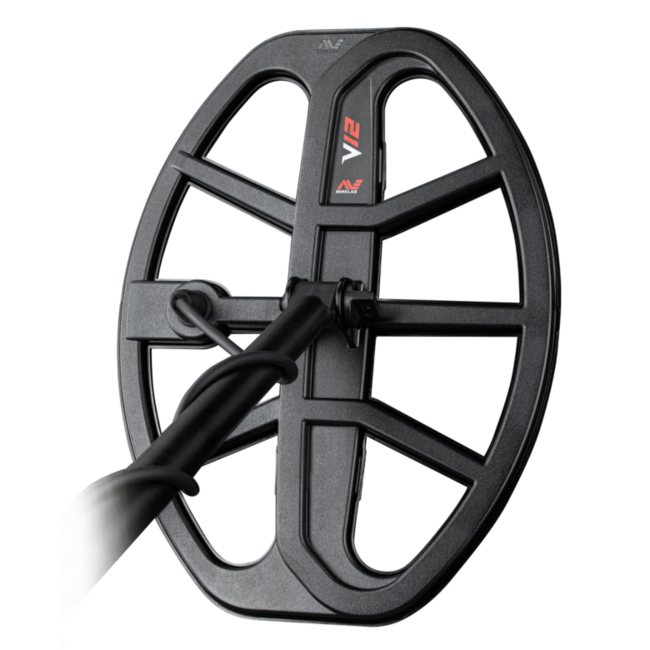

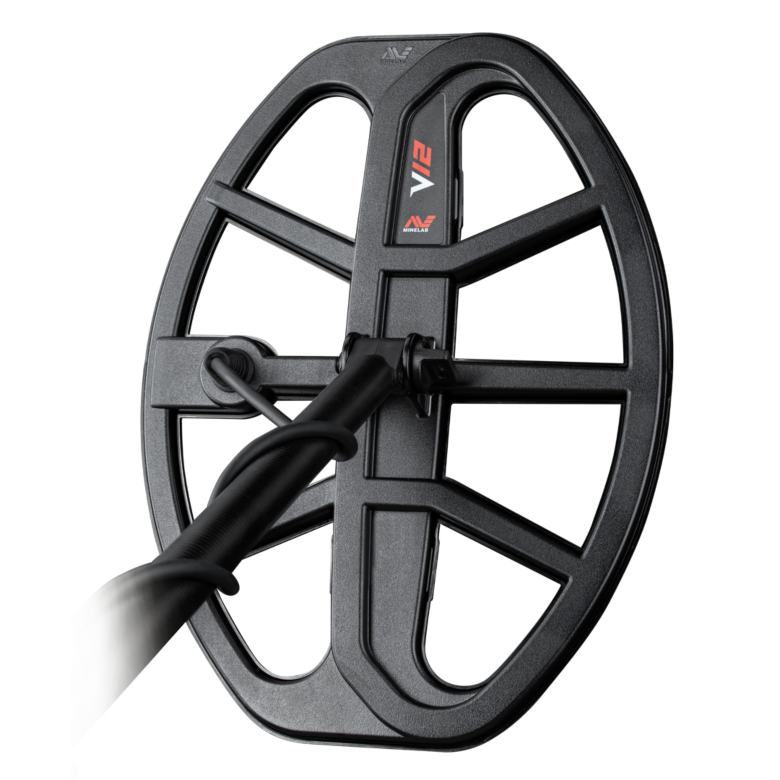

| Search Coil | V12 12"x9" DD and V8 8"x5" DD |
| Weight Metal Detector | 1.3kg |
| Adjustable length | 76 cm - 145 cm |
| Control panel waterproof | No, only the search disk is waterproof |
| Headphone jack | Yes, 3.5mm, bluetooth |
| Target audience | Beginners and advanced |

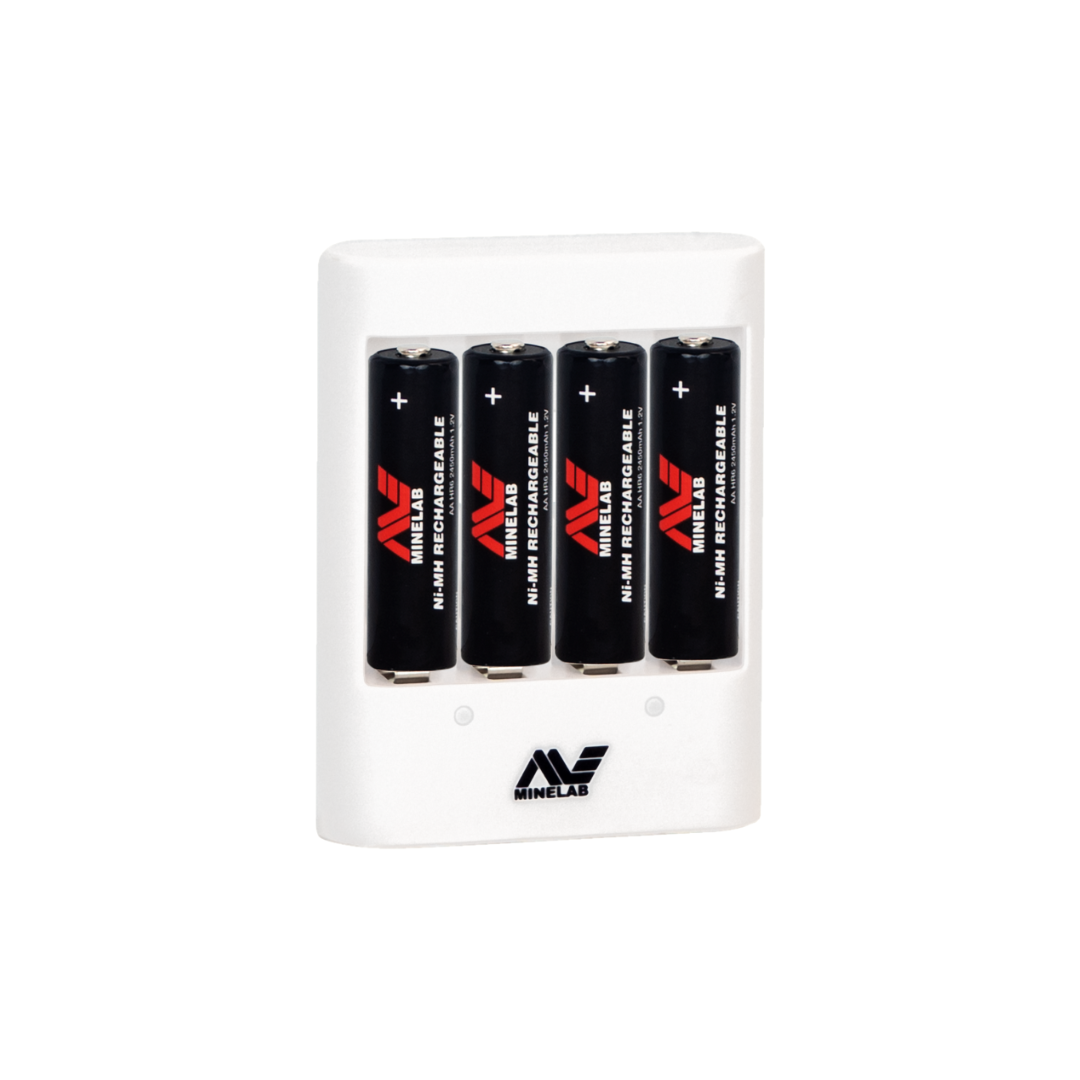

| Battery / Batteries | 4 x AA NiMH rechargeable |
| Battery Life | +/- 20 hours |
| Battery indicator readable | Yes, in 3 stages |
| Depth range readable | Yes, in 5 segments |
| Soil mineralization readable on the display | No |
| Ground Balance | Automatically |
| Sensitivity | Yes, in 10 steps |
| Pinpoint function | Yes |
| Discrimination against unwanted objects | Yes, in 25 segments |
| Notch | Yes |
| Object identification in audio tones (metal type recognition) | Yes, 5 tones |
| Object identification readable on display (metal type recognition) | Yes |
| Numerical Object identification (highly accurate) (metal type recognition) | Yes, from -9 to 40 (-9 to 0 is iron, and 1 to 40 is non-ferrous.) |
| Volume control | Yes, in 10 steps |
| Display Lighting | Yes red light |
| LED search coil lighting | No |
| GPS/Bluetooth /Other | No |
| Vibration as a metal detection signal | No |
| Frequency changer | Automatic interference suppression |
| Control software in different languages | Everything with symbols (universal) |
| Depth range small objects (1 euro) | 35 cm |
| Maximum depth range for large objects | 130cm |
| Suitable for use on the waterfront | Yes, search coil is only waterproof |
| Suitable for Wading (completely underwater) | No, only the search coil is waterproof |
| Suitable for Diving | No |
| Suitable for mineralized soils | Yes |
| Geschikt voor natte zoute bodems (aan zee) | Yes |
| Suitable for gold nugget detection (Africa, Australia) | Yes |
| Other additional functions |
