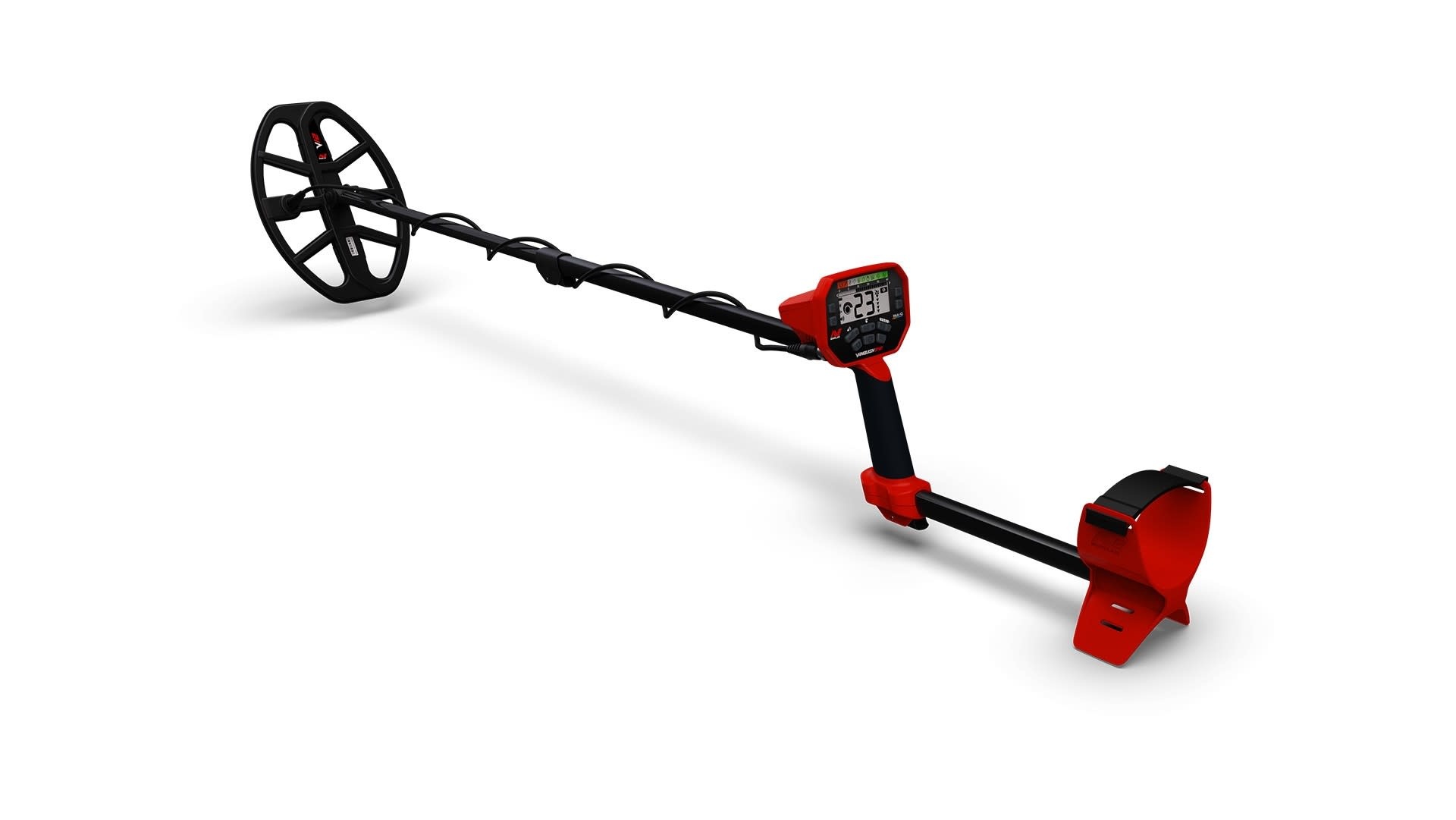

The Minelab Vanquish 540 is the most advanced model of the Vanquish series.

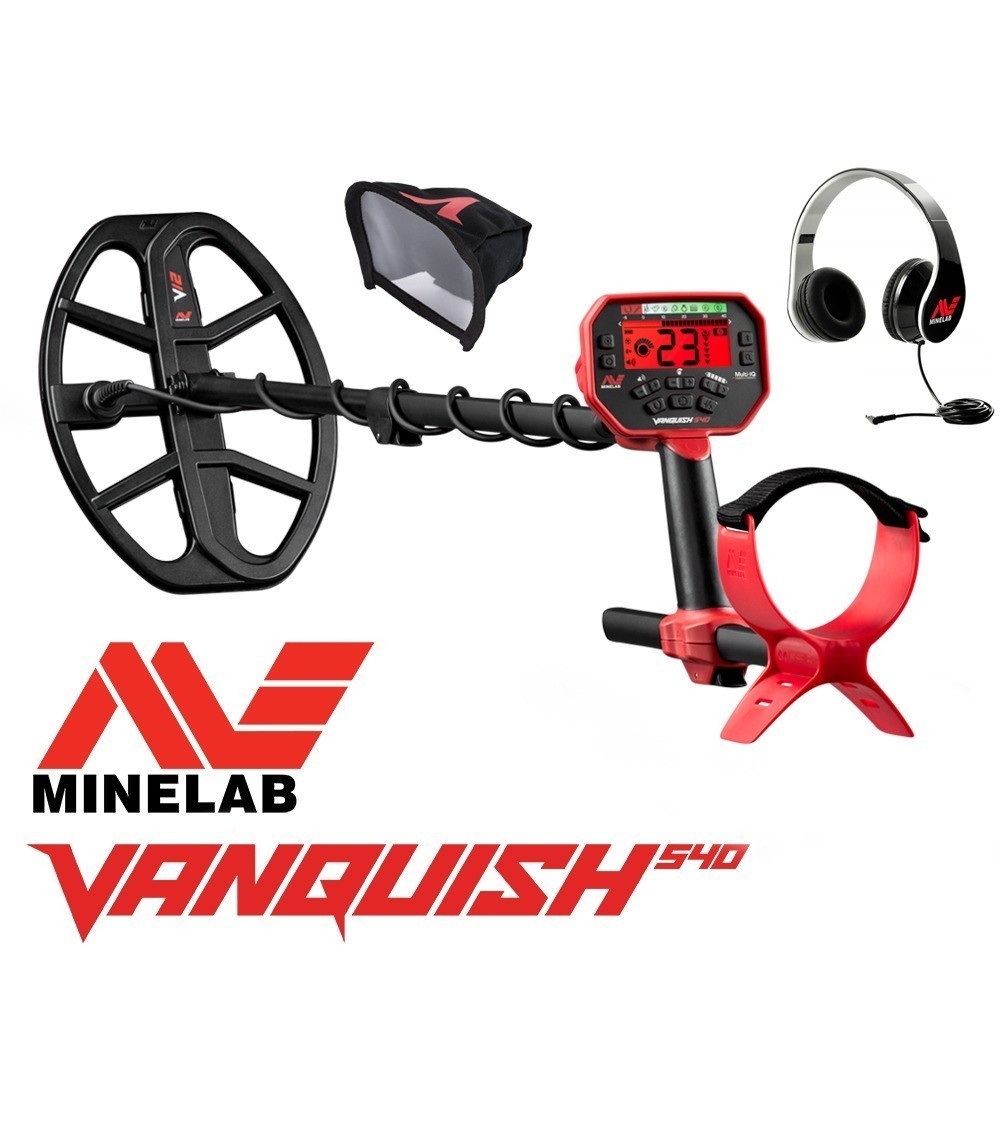

Supplied with a V12 double D drive (30x23 cm) and the Minelab Wired Headphones. The screen is backlit and has a Bluetooth option for wireless headphones. Searching the wet beach
Read more
Minelab Vanquish 540 OVERVIEW
VANQUISH 540: for the serious detectorist who demands ultimate performance. As if Multi-IQ technology, audio control, and pinpoint wasn’t enough the 540 also boasts iron-bias control, red LED backlight and rechargeable batteries.
What’s more, it comes with a waterproof 12” coil as standard for greater depth. No matter where the hunt takes you, the 540 is the ultimate detector that lets you detect on your terms.
Why Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Simply turn on and go. Nothing goes undetected and no terrain is off limits. Silver, gold or jewellery. Park, field or beach. Unearth the power of VANQUISH with Multi-IQ.
ALL METALS. ALL SOILS. ALL THE TIME.
ALL-TERRAIN Minelab
No matter what you seek, VANQUISH has you covered. Simply select one of the four Find Modes — Coin, Relic, Jewellery, or Custom — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Find Mode.
VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver ultimate control over what metals you want to accept or reject.
PACK & CARRY
1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.
IRON BIAS
More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.
INCLUDED V12 COIL
Cover more ground and search deeper with the V12 12”x9” V12 coil included as standard.
AUDIO CONTROL
Automatic noise cancelling, lag-free audio response and 10-volume settings put you in control.
WATERPROOF

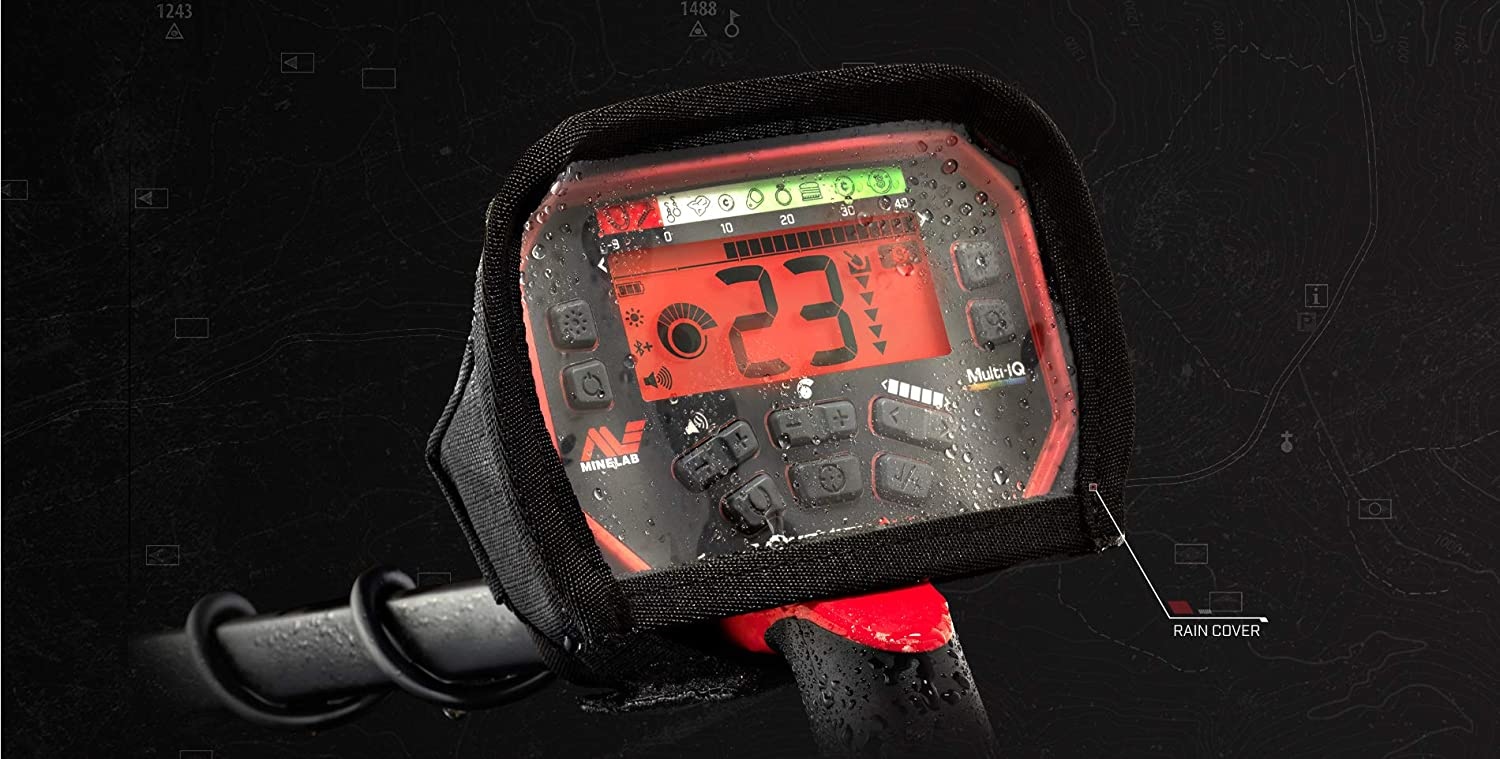

Waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with included Rain Cover
PINPOINT MODE
Included pinpoint mode to help you locate targets with extreme precision.
BACKLIGHT
Red LED Backlight to help low-light vision.
- Product Type Metal Detectors
- Best for Beach, Beginner, Coin, Gold, Relic
- Warranty Yes
- Detector Type All-Terrain
- Interchangeable Search Coil Yes
- Technology Multi-IQ
- Arm Rest Strap Yes
- Adjustable Shaft Yes
- GPS No
- Audio Tones Yes
- Depth Indication Yes
- Programmable Target Id Yes
- Target Id Yes
- Discrimination Adjustable
- Pinpoint Mode Yes
- Vibration Mode No
- Search Modes 4
- Search Mode Types Coins, Custom, Jewelry, Relics
- Search Flashlight No
- Display Type LCD
- Backlit Display Yes
- Volume Control Yes
- Bluetooth Compatible Yes
- Interchangeable Headphones No
- Rechargeable System Yes
| Search frequency | Multi-IQ |
| Technic | VLF and Multi-IQ |
| Metal detector type | Digital |
| Service | Push Buttons |
| Number of search modes | 5 Search Modes (Coins, Relic, Jewelry, All Metals, Custom) |
| Search Coil | V12 12"x9" DD |
| Weight Metal Detector | 1.3kg |
| Adjustable length | 76 cm - 145 cm |
| Control panel waterproof | No |
| Headphone jack | Yes, 3.5mm, bluetooth |
| Target audience | Beginners and advanced |
| Battery / Batteries | 4 x AA NiMH rechargeable |
| Battery Life | +/- 20 hours |
| Battery indicator readable | Yes, in 3 segments |
| Depth range readable | Yes, in 5 segments |
| Soil mineralization readable on the display | No |
| Ground Balance | Automatically |
| Sensitivity | Yes, in 10 steps |
| Pinpoint function | Yes |
| Discrimination against unwanted objects | Yes, in 25 segments |
| Notch | Yes |
| Object identification in audio tones (metal type recognition) | Yes, 5 different tones |
| Object identification readable on display (metal type recognition) | Yes |
| Numerical Object identification (highly accurate) (metal type recognition) | Yes, from -9 to 40 (-9 to 0 is iron and 1 to 40 is non-ferrous.) |
| Volume control | Yes, in 10 steps |
| Display Lighting | Yes, Red light |
| LED search coil lighting | Yes |
| GPS/Bluetooth /Other | No |
| Vibration as a metal detection signal | No |
| Frequency changer | Automatic interference suppression |
| Control software in different languages | Anything with symbols (universal) |
| Depth range small objects (1 euro) | 35 cm |
| Maximum depth range for large objects | 130 cm |
| Suitable for use on the waterfront | Yes, search disk is only waterproof |
| Suitable for Wading (completely underwater) | No, only the search disk is waterproof |
| Suitable for Diving | No |
| Suitable for mineralized soils | Yes |
| Geschikt voor natte zoute bodems (aan zee) | Yes |
| Suitable for gold nugget detection (Africa, Australia) | Yes |
| Other additional functions |
