Quest XPointer Max pinpointer
Maximum volume, maximum sensitivity and maximum possibilities!
The Quest XPointer Max is completely waterproof, has a luminescent display, a built-in rechargeable battery and can even distinguish ferrous from non-ferrous metals. With an innovative design, the XPointer Max is a high-quality pinpointer that every seeker is waiting for!

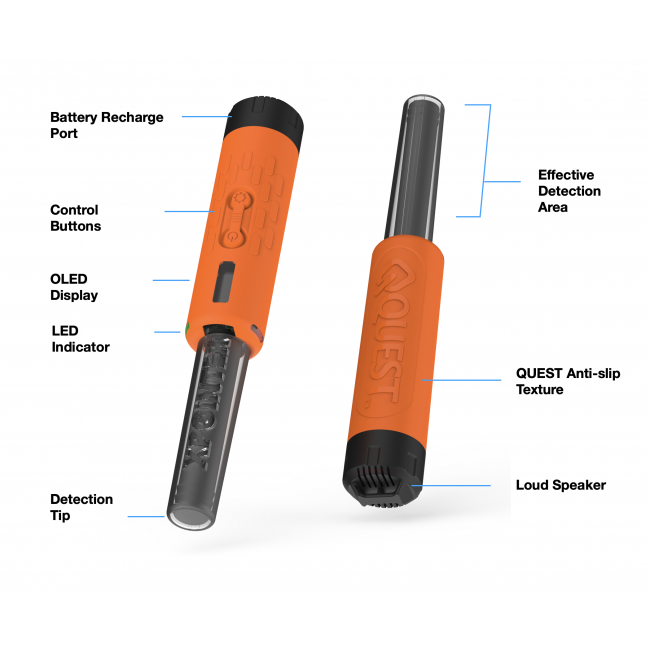

The XPointer Max distinguishes itself from other pinpointers by its innovative high-quality design. It has a non-slip handle that fits well in the hand, two easy-to-press buttons with which you can operate the pinpointer and which are always within thumb reach. It is also equipped with a transparent detection point and a small luminous display on which you can see what you have set and whether the found object is made of iron or precious metal.
The XPointer Max is completely waterproof to a maximum depth of 5 meters underwater. This has the advantage that you can also use this pinpointer underwater. A rain shower is no problem at all and after your search day you can simply rinse the Xpointer Max under the tap.

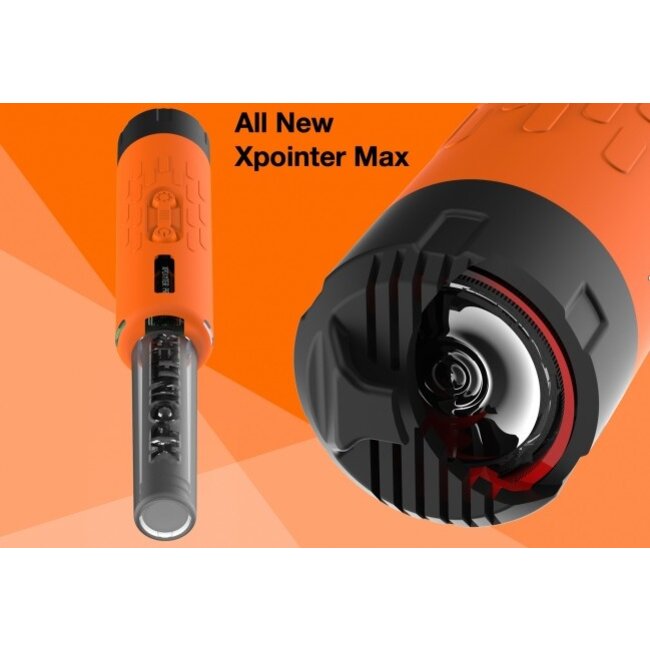

The XPointer Max has a speaker in the battery cap that allows you to hear the tones very clearly, comparable to a speaker of a full size metal detector. If you unscrew the battery cap, you will see that the speaker is connected with a 3.5 mm connection, which you can also use for headphones.
What should also not be missing is a built-in battery, which the XPointer Max also complies with. The 1000 mAh battery ensures maximum power and can be charged by means of a USB cable.
Settings and display
The XPointer Max has three detection modes, sound only, vibration only and sound and vibration simultaneously. The sensitivity can also be set in 4 steps and you can switch the searchlight on or off. All settings can be read from the luminous display, so no more guessing in the dark.
The Xpointer Max can distinguish ferrous from non-ferrous metals by means of two different tones, two different colored LEDs and a visual representation on the display.
The retune function is designed to perform ground balance on highly mineralized soil or to widen the detection field.
shrink and get closer to the object quickly.
Frequency 95 kHz
Technique VLF (Very Low Frequency)
Control Two push buttons

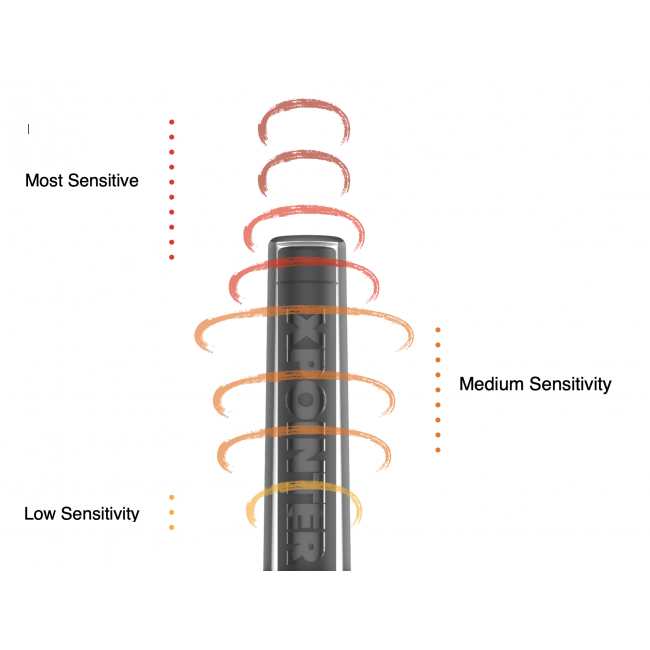

Sensitivity adjustable (Sensitivity) Yes, in 4 levels
Waterproof Waterproof up to 5 meters
Headphone jack Yes, under the battery cap
Built-in wireless module No
Audio Tones as Metal Detection Signal Yes
Vibration as metal detector signal Yes
Audio & vibration at the same time as metal detector signal Yes
LED lighting Yes
Ground Balance Yes, automatically when powered on
Type and number of batteries 1,000mAh Lithium battery, rechargeable via USB
Battery life +/- 14 hours
Low battery alarm Yes, LED flashes when battery is low
Discrimination against unwanted objects Yes, Ferrous / non ferrous
Loss alarm Yes, after 15 minutes
Object identification through audio tones Yes
Pin pointer weight 400g
Pin pointer dimensions -24 x 4 x 4 cm
-The detection sensor is 9cm long
Scan area 360°
Depth scale No
Fixing eye for an anti-loss cord Yes
Suitable for diving Yes, up to 5 m underwater
Other additional functions -Storage temperature: -20 to 60 °C
Scope of supply:
Quest XPointer Max Pinpointer
USB charging cable
2 year warranty
|Service||2 push buttons|
|Sensitivity adjustable||In 4 stages|
|waterproof||Waterproof to 5 meters|
|Built-in wireless module||No|
|Audio Tones as metal detector signal||Yes|
|Vibration as a metal detector signal||Yes|
|Audio & vibration at the same time as metal detector signal||Yes|
|Ground Balance||Yes, the return function|
|Rechargeable or Batteries||1,000mAh lithium battery, rechargeable via USB|
|Battery Life||Up to 14 hours|
|Low battery alarm||Yes, the LED flashes when the battery is low|
|Discrimination against unwanted objects||Yes, iron / not iron|
|Object Identification by Audio Tones||Yes|
|Pin pointer weight||180 g|
|360 ° detection||Yes|
|Depth scale||Yes, readable or the display|
|Fixing eye for an anti-loss cord||Yes|
|Suitable for diving||Yes, up to 5 m|

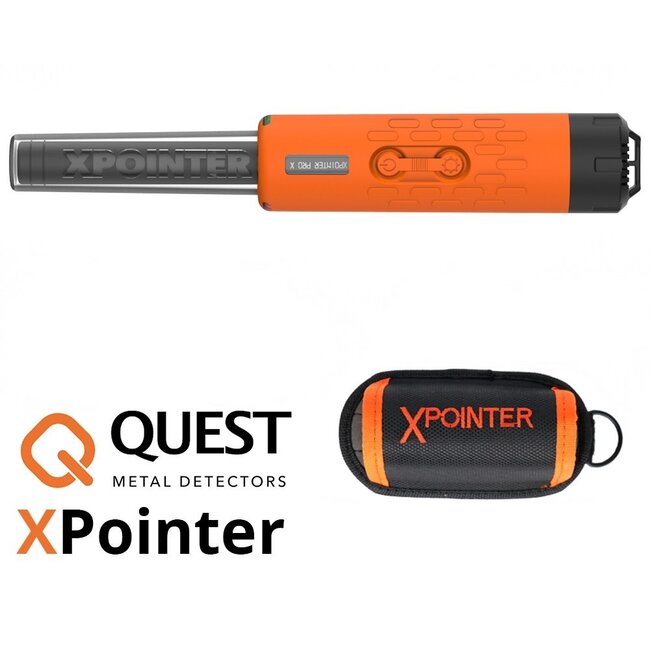

|Additional accessories||Includes: holster, charging cable, anti-loss cord and caps to protect the detection point|
