XP Deus/ORX 22,5 cm X35 DD Coil

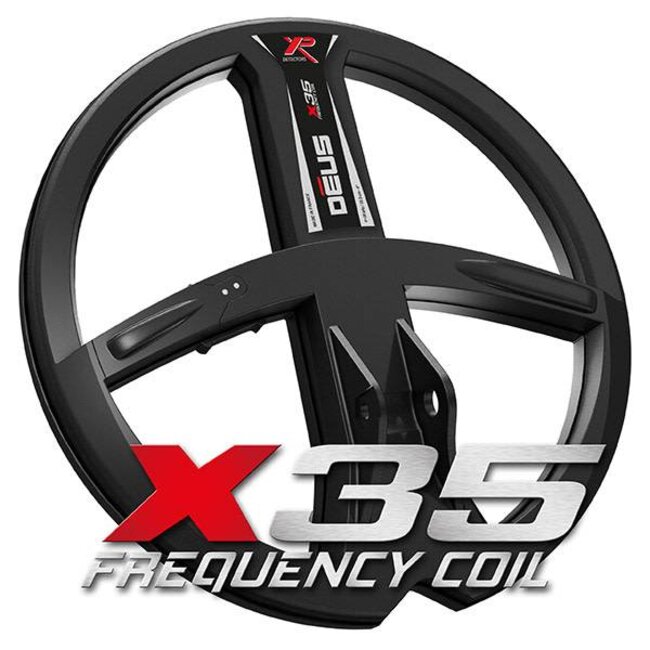

X35 XP Deus/ORX 9" (22cm) search coil for XP DEUS metal detector.

The New XP X35 search coils are available in 22cm (9”), 28cm (11”) and 34 / 28cm (13” x11”) and will work with the DEUS metal detector in version 5. The searching coils will allow you to choose from a wide range of frequencies ranging from 3.7kHz to 27.7kHz. In total there are 35 available frequencies, based around 5 main frequencies that are quickly accessible. The XP X35 metal detecting coils feature new Boost mode which is now an option on frequencies 3.7Khz to 4.4 kHz and can significantly increase detection depth on highly conductive targets, such as large masses and large Silver coins. For added performance on such targets, XP recommends the larger coils such as the 34/28 cm (13” x11”) or the 28cm (11”) round coil.

XP X35 search coil features:

• 35 frequencies: 5 main frequencies with 7 wide offsets 3.7 to 4.4kHz, 7.1 to 8.4kHz, 10.5 to 12.4kHz, 15.2 to 17.8kHz, 23.5 to 27.7kHz
• Selectable frequency offset without loss of performance.
• TX power adjustment is available on all frequencies and offsets
• Special Low-frequency TX Boost feature: •

1. Normal or Boost option – The transmitted power has 2 selectable levels when using frequencies 3.7Khz to 4.4kHz.
2. The BOOST mode significantly increases the transmission power of the transmitting coil, allowing greater detection levels if the soil conditions allow.
3. TX boost is a special mode, the battery life of the coil may be reduced down to 6 hours.

• The overall battery life of the XP X35 search coil has improved on most frequencies by +10% to +40%
• High frequencies 23- 27.7kHz – Excellent sensitivity to low conductive targets and small targets.
• Better overall stability
• The X35 coils are available in 22cm (9”), 28cm (11”) and 34 / 28cm (13” x11”) and will work with the DEUS in version 5.
